B1 | grenaillé mat, sous-couche en caoutchouc, noir |
B2 | grenaillé mat, sous-couche en caoutchouc, blanc |
B3* | grenaillé mat, caoutchouc vulcanisé, noir |
B4* | grenaillée mat, caoutchouc vulcanisé, blanc |
C3* | poli, caoutchouc vulcanisé, noir |
C4* | poli, caoutchouc vulcanisé, blanc |

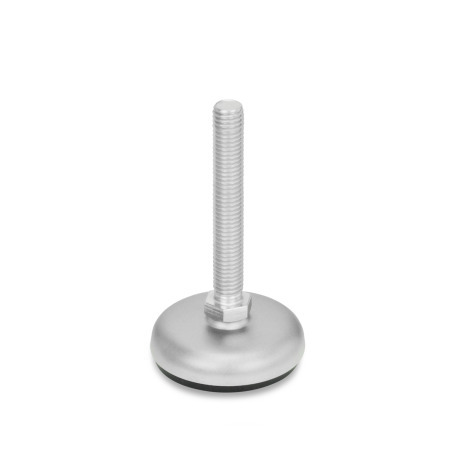

S | sans écrou hexagonal externe en bas |
SK | avec écrou externe hexagonal externe en bas |
T | sans écrou, clé plate en bas |
TK | avec écrou, clé plate en bas |
U | sans écrou, douille hexagonale en haut, clé plate en bas |
UK | avec écrou, douille hexagonale en haut, clé plate en bas |
V | sans écrou, hexagone externe en haut, clé plate en bas |
VK | avec écrou, hexagone externe en haut, clé plate en bas |
W | avec manchon réglable, filetage couvert, clé plate en bas |
X | hexagone externe, filetage femelle |
d1 | d2 | l1 Version S/SK | Version T/TK et U/UK | l2 Version V/VK | l3 +4 Version W | l7 +4 Version X | h1 | h2 | s | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
50 | M 8 | 40 | 50 | 63 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 37 | 14.5 | 3.5 | 3 |
50 | M 10 | 50 | 60 | 80 | 100 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 40 | 14.5 | 3.5 | 3 |
50 | M 12 | 60 | 80 | 100 | 125 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 43 | 14.5 | 3.5 | 3 |
50 | M 16 | - | - | - | - | 75 | 100 | 125 | 150 | 200 | 250 | - | - | - | - | - | - | - | - | 49 | 14.5 | 3.5 | 3 |
60 | M 8 | 40 | 50 | 63 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 38 | 16 | 4 | 3 |
60 | M 10 | 50 | 60 | 80 | 100 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 41 | 16 | 4 | 3 |
60 | M 12 | 60 | 80 | 100 | 125 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 45 | 16 | 4 | 3 |
60 | M 16 | - | - | - | - | 75 | 100 | 125 | 150 | 200 | 250 | 75 | 100 | 125 | 150 | 123 | 148 | 173 | 198 | 50 | 16 | 4 | 3 |
80 | M 8 | 40 | 50 | 63 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 40 | 18 | 5 | 3 |
80 | M 10 | 50 | 60 | 80 | 100 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 43 | 18 | 5 | 3 |
80 | M 12 | 60 | 80 | 100 | 125 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 47 | 18 | 5 | 3 |
80 | M 16 | - | - | - | - | 75 | 100 | 125 | 150 | 200 | 250 | 75 | 100 | 125 | 150 | 125 | 150 | 175 | 200 | 52 | 18 | 5 | 3 |
80 | M 20 | - | - | - | - | 75 | 100 | 125 | 150 | 200 | 250 | 100 | 125 | 150 | 200 | 149 | 174 | 199 | 249 | 60 | 18 | 5 | 3 |
80 | M 24 | - | - | - | - | 100 | 125 | 150 | 200 | 300 | - | 100 | 150 | 200 | - | 174 | 224 | 274 | - | - | 18 | 5 | 3 |
100 | M 8 | 40 | 50 | 63 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 42 | 20 | 6 | 3 |
100 | M 10 | 50 | 60 | 80 | 100 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 45 | 20 | 6 | 3 |
100 | M 12 | 60 | 80 | 100 | 125 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 49 | 20 | 6 | 3 |
100 | M 16 | - | - | - | - | 75 | 100 | 125 | 150 | 200 | 250 | 75 | 100 | 125 | 150 | 126 | 151 | 176 | 201 | 54 | 20 | 6 | 3 |
100 | M 20 | - | - | - | - | 75 | 100 | 125 | 150 | 200 | 250 | 100 | 125 | 150 | 200 | 151 | 176 | 201 | 251 | 62 | 20 | 6 | 3 |
100 | M 24 | - | - | - | - | 100 | 125 | 150 | 200 | 300 | - | 100 | 150 | 200 | - | 176 | 226 | 276 | - | - | 20 | 6 | 3 |
120 | M 20 | - | - | - | - | 100 | 125 | 150 | 200 | 250 | - | - | - | - | - | - | - | - | - | 65 | 22 | 6 | 4 |
120 | M 24 | - | - | - | - | 100 | 125 | 150 | 200 | 300 | - | - | - | - | - | - | - | - | - | - | 22 | 6 | 4 |
120 | M 30 | - | - | - | - | 100 | 125 | 150 | 200 | 300 | - | - | - | - | - | - | - | - | - | - | 22 | 6 | 4 |
d1 | d2 | d3 | h3 +4 | h4 +4 | h5 +4 | l4 | l5 | l6 | A/F1 | A/F2 | A/F3 | A/F4 | A/F5 | A/F6 | A/F7 | t |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
50 | M 8 | - | 23 | - | - | - | - | - | 17 | - | - | - | - | - | 14 | 8 |
50 | M 10 | - | 23 | - | - | - | - | - | 17 | - | - | - | - | - | 14 | 10 |
50 | M 12 | - | 23 | - | - | - | - | - | 17 | - | - | - | - | - | 17 | 12 |
50 | M 16 | - | - | 29 | - | - | - | - | - | 12 | 8 | - | - | - | 22 | 16 |
60 | M 8 | - | 24 | - | - | - | - | - | 17 | - | - | - | - | - | 14 | 8 |
60 | M 10 | - | 24 | - | - | - | - | - | 17 | - | - | - | - | - | 14 | 10 |
60 | M 12 | - | 24 | - | - | - | - | - | 17 | - | - | - | - | - | 17 | 12 |
60 | M 16 | 24 | - | 30 | 27 | 45 | 45 | 29 | - | 12 | 8 | 10 | 12 | 20 | 22 | 16 |
80 | M 8 | - | 26 | - | - | - | - | - | 17 | - | - | - | - | - | 14 | 8 |
80 | M 10 | - | 26 | - | - | - | - | - | 17 | - | - | - | - | - | 14 | 10 |
80 | M 12 | - | 26 | - | - | - | - | - | 17 | - | - | - | - | - | 17 | 12 |
80 | M 16 | 24 | - | 32 | 29 | 45 | 45 | 29 | - | 12 | 8 | 10 | 12 | 20 | 22 | 16 |
80 | M 20 | 30 | - | 33 | 30 | 56 | 56 | 36 | - | 15 | 10 | 13 | 16 | 24 | 27 | 20 |
80 | M 24 | 35 | - | 36 | 33 | 67 | 67 | 42 | - | 19 | 12 | 17 | 20 | 30 | - | - |
100 | M 8 | - | 28 | - | - | - | - | - | 17 | - | - | - | - | - | 14 | 8 |
100 | M 10 | - | 28 | - | - | - | - | - | 17 | - | - | - | - | - | 14 | 10 |
100 | M 12 | - | 28 | - | - | - | - | - | 17 | - | - | - | - | - | 17 | 12 |
100 | M 16 | 24 | - | 34 | 31 | 45 | 45 | 29 | - | 12 | 8 | 10 | 12 | 20 | 22 | 16 |
100 | M 20 | 30 | - | 35 | 32 | 56 | 56 | 36 | - | 15 | 10 | 13 | 16 | 24 | 27 | 20 |
100 | M 24 | 35 | - | 38 | 35 | 67 | 67 | 42 | - | 19 | 12 | 17 | 20 | 30 | - | - |
120 | M 20 | - | - | 39 | - | - | - | - | - | 15 | 10 | - | - | - | 27 | 20 |
120 | M 24 | - | - | 42 | - | - | - | - | - | 19 | 12 | - | - | - | - | - |
120 | M 30 | - | - | 46 | - | - | - | - | - | 24 | 12 | - | - | - | - | - |
d1 | d2 | Capacité de charge in kN Version S / SK Type B1 / B3 / C3 | Type B2/B4/C4 | Version T / TK et U / UK Type B1 / B3 / C3 | Type B2/B4/C4 | Version V / VK et W Type B1 / B3 / C3 | Type B2 / B4 / C4 | Version X Type B1 / B3 / C3 | Type B2 / B4 / C4 |
---|---|---|---|---|---|---|---|---|---|
50 | M 8 | 8 | 8 | - | - | - | - | 8 | 8 |
50 | M 10 | 14 | 14 | - | - | - | - | 13 | 13 |
50 | M 12 | 20 | 20 | - | - | - | - | 20 | 20 |
50 | M 16 | - | - | 28 | 28 | - | - | 28 | 25 |
60 | M 8 | 8 | 8 | - | - | - | - | 8 | 8 |
60 | M 10 | 14 | 14 | - | - | - | - | 13 | 13 |
60 | M 12 | 20 | 20 | - | - | - | - | 20 | 20 |
60 | M 16 | - | - | 28 | 25 | 27 | 27 | 28 | 25 |
80 | M 8 | 8 | 8 | - | - | - | - | 8 | 8 |
80 | M 10 | 14 | 14 | - | - | - | - | 13 | 13 |
80 | M 12 | 19 | 15 | - | - | - | - | 15 | 15 |
80 | M 16 | - | - | 19 | 15 | 24 | 24 | 19 | 15 |
80 | M 20 | - | - | 19 | 15 | 24 | 24 | 19 | 15 |
80 | M 24 | - | - | 19 | 15 | 24 | 24 | - | - |
100 | M 8 | 8 | 8 | - | - | - | - | 8 | 8 |
100 | M 10 | 14 | 14 | - | - | - | - | 13 | 13 |
100 | M 12 | 17 | 14 | - | - | - | - | 17 | 14 |
100 | M 16 | - | - | 17 | 14 | 21 | 21 | 17 | 14 |
100 | M 20 | - | - | 17 | 14 | 21 | 21 | 17 | 14 |
100 | M 24 | - | - | 17 | 14 | 21 | 21 | - | - |
120 | M 20 | - | - | 25 | 22 | - | - | 25 | 22 |
120 | M 24 | - | - | 25 | 22 | - | - | - | - |
120 | M 30 | - | - | 25 | 22 | - | - | - | - |
